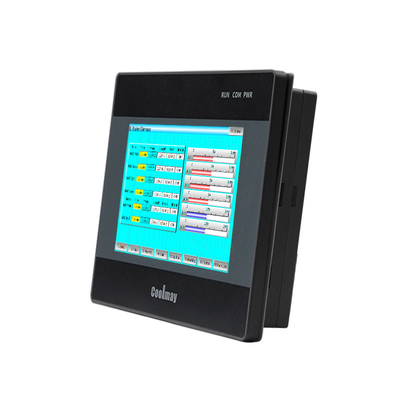

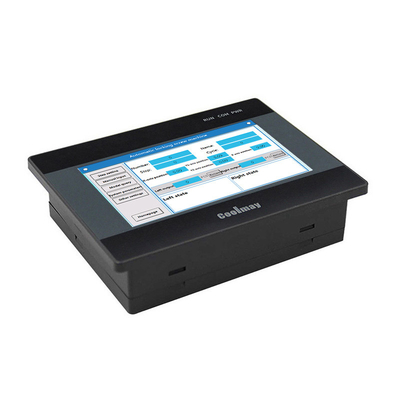

4.3 Inch HMI PLC Control Panel Programmable Logic PLC Controller Linear Arc Interpolation
| Nguồn gốc | Trung Quốc |
|---|---|
| Hàng hiệu | Coolmay |
| Chứng nhận | CE |
| Số mô hình | EX3G-8043H-24MT |
| Số lượng đặt hàng tối thiểu | 1 miếng |
| Giá bán | có thể đàm phán |
| chi tiết đóng gói | Hộp hộp |
| Thời gian giao hàng | 3-7 ngày làm việc sau khi thanh toán xong |
| Điều khoản thanh toán | T/T, Western Union, MoneyGram, PayPal, Alipay |
| Khả năng cung cấp | 2000 CÁI MỖI NGÀY |
Liên hệ với tôi để có mẫu và phiếu giảm giá miễn phí.
Whatsapp:0086 18588475571
wechat: 0086 18588475571
Ứng dụng trò chuyện: sales10@aixton.com
Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp trợ giúp trực tuyến 24 giờ.
xThông tin chi tiết sản phẩm
| Loại | HMI/PLC tất cả trong một | Kích thước | 4,3 inch |
|---|---|---|---|
| vào/ra | 12DI/12DO | đầu ra kỹ thuật số | bóng bán dẫn |
| giao thức | Modbus RTU | Phần mềm | miễn phí |
| Làm nổi bật | 4.3 Inch HMI PLC Control Panel,Programmable logic HMI PLC Control Panel,Programmable Logic PLC Controller |
||
Mô tả sản phẩm
4.3 Inch HMI PLC Control Panel Programmable logic PLC Controller linear arc interpolation
Model:EX3G-8043H-24MT
- 4.3inch touch screen
-12DI/12DO
- Mini B type USB port
- Rs232/485 port
| Model | EX3G-8043H | |
| Display | Dimension | 134*102*34mm |
| Panel | 4.3 inch Four-wire resistive panel | |
| Cutout size | 120*94mm | |
| I/O | DI/DO | 12DI/12DO |
| DO type | Relay MR or MOS | |
| (Relay output: max load 5A/ MOS output: max load 2A) | ||
| Analog I/O | 4AI/2AO | |
| AI type (optional) | Thermocouple E/E_/K/K_/S/S_/T/T_/J/J_ / PT100/ PT1000/ NTC10K/ NTC50K/ NTC100K/ | |
| 0~10V/ 0~5V/ 0~20mA/ 4~20mA/ mixed | ||
| AO type (optional) | 0~10V /0~5V/ 0~20mA/ 4~20mA/ mixed | |
| High-speed function | High-speed counting | Single phase 6 channel 60KHz |
| High-speed pulse | 8 channels, Y0-Y3 is 100KHz, Y4-Y7 is 10KHz. | |
| High-speed counting + high-speed pulse < 480KHz | ||
Features:
- Support interrupt
- linear arc interpolation
- PID auto-tuning
- 32K program capacity
- 32K retentive register
PLC analog wiring:
Two-wire system: The positive pole of the power supply is connected to that of the transmitter, and the negative pole of the transmitter is connected to the AD side, and the negative pole of the power supply is connected to the GND. Generally it is the wiring method of the 4-20MA/0-20MA transmitter.
Three-wire system: The positive pole of the power supply is connected to that of the transmitter. The negative of the power supply and that of the signal output are the same terminal. The transmitter signal output is connected to the AD terminal.
Four-wire system: The positive and negative terminals of the power supply are connected to those of the transmitter respectively, and the positive and negative of the transmitter signal outputs are connected to the AD and the GND terminal respectively.
The two wires of the temperature analog are connected to the AD and the GND terminal respectively. If it is a three-wire PT100, it needs to be connected in two lines. The GND common terminal of the analog input and output can be shared.
PLC digital inputs wiring:
Ports short circuit: S/S of PLC input terminal is connected to 24V, X terminal is connected to power supply 0V, i.e., input signal.
Two-wire system (magnetic control switch): The positive pole of the magnetic switch is connected to PLC X terminal, and the negative pole is connected to 0V.
Three-wire system (photoelectric sensor or encoder): Sensor or encoder power supply is connected to power supply positive, signal line is connected to X terminal. Encoder and photoelectric sensor are NPN type (PNP is customized).
PLC digital outputs wiring:
Transistor: Output is NPN, COM is connected to the negative pole, and Y is connected to the positive pole of the power supply with a load.
Relay: Dry contact output, COM can be connected to the positive or negative.
